SIU 2019 39th Annual Society of International Urology Congress

SIU 2019: Developments in Imaging Prior to Biopsy — Are Systematic Biopsies Still Required?

Athens, Greece ( In his presentation, Dr. Laurence Klotz discussed the recent development in imaging prior to a prostate biopsy.

With Gleason grade group 1 (GG1), the goal of monitoring is to identify the presence of higher-grade cancer. With Gleason grade group 2 (GG2) triggers for intervention are not so obvious.

The PROMIS study was a landmark trial showing the superior accuracy of MRI compared to transrectal biopsy (TRUS-Bx) alone1. A total of 576 men underwent 1.5 Tesla MRI with systematic and template mapping biopsy. A total of 40% had clinically significant prostate cancer. This showed that MRI had a negative predictive value (NPV) and sensitivity of 76% and 88%, respectively1.

Since then, there have been many additional studies assessing the effectiveness of MRI in detecting and ruling out clinically significant cancer (Table 1), with an NPV ranging from 79-100%. There have also been a few randomized controlled studies comparing systematic biopsies and MRI targeted biopsies, showing an advantage to the targeted biopsies (Table 2).

Table 1 – Many studies attempting to assess the role of MRI in the detection and ruling out clinically significant disease:

studies attempting to assess the role of MRI

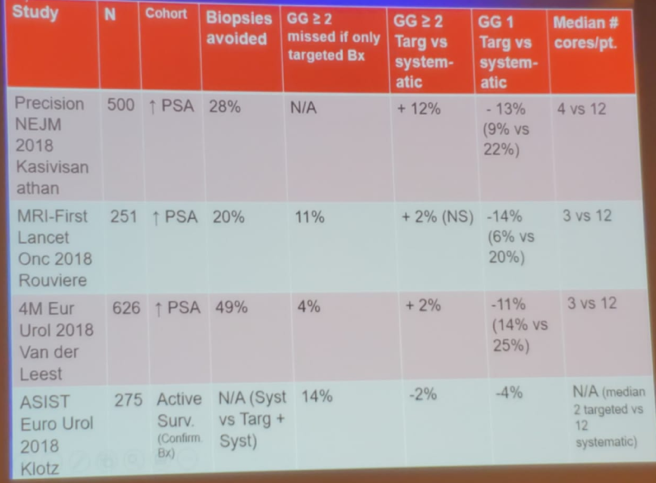

Table 2 – Randomized MRI studies comparing systematic biopsies vs. MRI targeted biopsies:

Randomized MRI studies comparing systematic biopsies vs MRI targeted biopsies

The NPV of the MRI is a function of the underlying risk. For a 30% risk of prostate cancer, the NPV is 88%, while for 60% risk, the NPV is 67%. In the landmark randomized prospective controlled study, the PRECISION study, the MRI informed targeted biopsy diagnosed 38% clinically significant cancer compared to only 26% by the systematic biopsies2. Figure 1 summarizes the percentage of clinically significant, clinically insignificant, and no cancer stratified by PI-RADS 2 MRI findings in the PRECISION trial.

Figure 1 – Rates of cancer and no cancer in the PRECISION trial:

Rates of cancer and no cancer in the PRECISION trial

In the recently published ASSIST trial3 led by Dr. Klotz, all undiagnosed or untreated patients had an MRI at 2 years. The upgrading rate to GG2 or above was 27% in the systematic biopsy and 13% in the MRI + systematic biopsy arm (HR 0.62, p=0.056). Dr. Klotz concluded in this trial, that despite seeing no difference in upgrading at the initial biopsy, patients on the MRI arm had a lower risk of subsequent upgrading3.

According to Dr. Klotz, there is no doubt that MRI and targeted biopsies confer an improvement in the diagnosis rate of clinically significant prostate cancer when compared to systematic biopsies. However, the NPV for MRI has been shown to be lower than originally had been hoped for (around 85%).

The general consensus that is being developed, is that if the risk of high-grade cancer is lower than 10%, it might be safe to omit systematic biopsies, otherwise, they are necessary. In men with elevated PSA – deciding what is the correct next step – MRI or biomarker, is largely a function of resources /cost/availability/patient preference.

Dr. Klotz also discussed the ideal number of cores that need to be taken per each target. It would seem that the magic number is 3 cores per target4.

Additional concerns about relying on MRI and only targeted biopsy:

  1. Intraductal cancer (IDC) and cribriform pattern are both associated with aggressive disease and appear to be less conspicuous in MRI.
  2. Fusion targeted biopsies have a learning curve, and a negative targeted biopsy can be due to a miss, providing false reassurance.

Dr. Klotz concluded his talk stating the main limitations of MRI. These include its lack of real-time interaction, the requirement of a radiologist, risk of not capturing small satellite lesion, and underestimation of the lesion volume. Additional limitations include the cost, complexity of MRI, and the associated patient anxiety. This leads us to ask whether there are any alternatives to MRI?

One of the more interesting and currently available alternatives to MRI is the high-resolution Micro-Ultrasound. It uses Exact 29 MHz, compared to the conventional ultrasound, which uses 6-9 MHZ. The resolution is also improved with 70 microns. It has a similar footprint and cost as conventional ultrasound, with a short learning curve. It uses the prostate risk identification using micro-ultrasound (PRIMUS) protocol, which is like the PIRADS protocol (Figure 2). It has been shown to have comparable sensitivity of MRI and many publications assessing its utility will be coming out in the near future.

Figure 2 – PRIMUS protocol for the high-resolution micro-ultrasound:

PRIMUS protocol for the high resolution micro ultrasound

Presented by: Laurence Klotz, MD, FRCS(C), Professor of Surgery, University of Toronto, Toronto, Canada, Chairman of the World Uro-Oncology Federation, former Chief of Urology, Sunnybrook Health Sciences Centre, former President of the Urological Research Society and the Canadian Urological Association

Written by: Hanan Goldberg, MD, Urology Department, SUNY Upstate Medical University, Syracuse, New York, USA, Twitter: @GoldbergHanan at the 39th Congress of the Société Internationale d'Urologie, SIU 2019, #SIUWorld #SIU2019, October 17-20, 2019, Athens, Greece

1. Ahmed HU, El-Shater Bosaily A, Brown LC, et al. Diagnostic accuracy of multi-parametric MRI and TRUS biopsy in prostate cancer (PROMIS): a paired validating confirmatory study. The Lancet 2017; 389(10071): 815-22.

2. Kasivisvanathan V, Rannikko AS, Borghi M, et al. MRI-Targeted or Standard Biopsy for Prostate-Cancer Diagnosis. New England Journal of Medicine 2018; 378(19): 1767-77.

3. Klotz L, Loblaw A, Sugar L, et al. Active Surveillance Magnetic Resonance Imaging Study (ASIST): Results of a Randomized Multicenter Prospective Trial. Eur Urol 2019; 75(2): 300-9.

4. Zhang M, Milot L. Value of Increasing Biopsy Cores per Target with Cognitive MRI-targeted Transrectal US Prostate Biopsy. 2019; 291(1): 83-9.
